    12/20kV, 14/24kV ,18/20kV Cold Shrinkable Products
    Read:2706  2013-8-27



    Product Introduction:

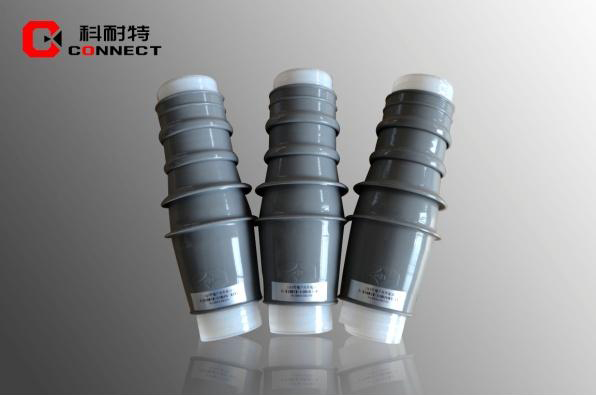

    CN-NLS cold shrinkable indoor termination, CN-WLS cold shrinkable outdoor termination, CN-JLS cold shrinkable straight through joint are mainly composed of prefabricate main body, terminal lug, cold shrinkable breakout, cold shrinkable insulating tube, phase color tube. The stress cone inside prefabricate main body and the insulating body adopt imported liquid silicone rubber injecting formed which has long-term stability of lasting hold power and electric field uniform ability.  Keep a suitable radial pressure to the cable with good property of interface, there is no creepage raise from respiration when cable runs. Cable lugs and other supporting materials are based on customers’ requirement, ensure cable insulating and waterproof.

    Product Characteristics:
    Excellent raw-material: prefabricate main body is adopts high quality liquid silicone rubber, which has excellent insulation, elongation, and breakdown properties, small residual deformation after expansion.
    Cold shrink structure: using latest expansion equipment and expansion support tube to ensure product expand without break.
    Easy installation: using cold shrinkable expansion structure, there’s no need special training, convenient installation.

    Standard
    Range Applied:

    Voltage Level

    Cable cross section

    Diameter of insulating

    12/20kV, 14/24kV ,18/20kV

    50mm2~800mm2

    Φ25~53

    Model Table

    Cold shrinkable
    indoor termination

    Cold shrinkable
    outdoor termination

    Cold shrinkable straight
    through joint

    Cable cross section
    applied(mm2)

    CN-NLS-20 N-1

    CN-WLS-20 N-1

    CN-JLS-20 N-1

    50~120

    CN-NLS-20 N-2

    CN-WLS-20 N-2

    CN-JLS-20 N-2

    150~240

    CN-NLS-20 N-3

    CN-WLS-20 N-3

    CN-JLS-20 N-3

    300~400

    CN-NLS-20  N-4

    CN-WLS-20 N-4

    CN-JLS-20 N-4

    500~800

         Nstands for cable cores.
